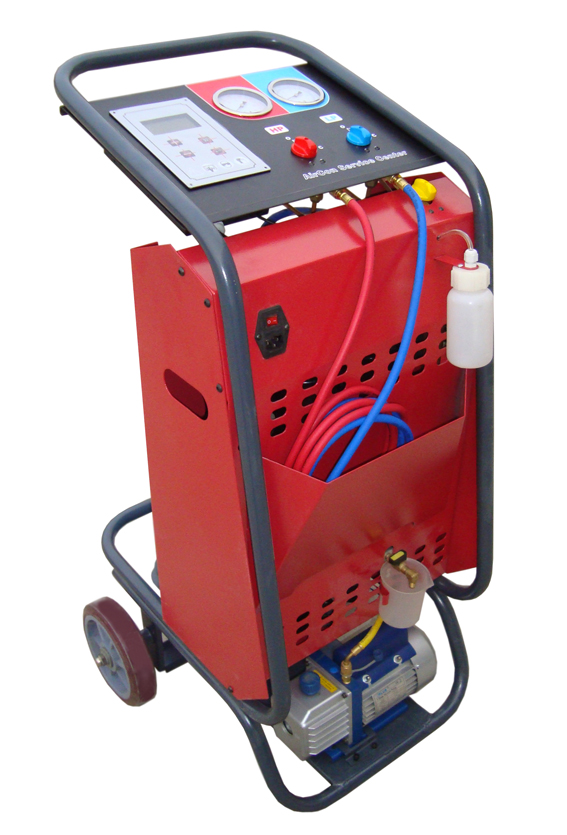

 IQR380 Recovering/Recycling/Recharging AC Service Station |
|
Main Functions:
·Recovering & recycling
·Recharging with electronic scale
·Vaccum pump
·Oil drain and injection
·Automatic air purge （incondensable gases）;
·ntelligent AC system diagnoses
TOP KEY FEATURES
·Friendly interface easy to use
·System language: English, Chinese and Russian
·Special designed oil separator to protect compressor
·Maintenance message display
·Optic & acoustic status indictors
·Heavy duty filter drier
·Tank pressure indicting
·Automatic date record: pump oil worked time,
·Weight of refrigerant in the tank and accumulativerecovered refrigerant |
 |
| Specifications: |
| Voltage: |
220V/50Hz or 110V/60Hz |
| Refrigerant Tank: |
27.5 lbs. (12.5 Kg) |
| Operating Temperature: |
50-120 ℉(11-47℃ ) |
| Recovery rate: |
240g/M |
| Recycling Filter Drier: |
16cu.in.in-line (262 cc) |
| Scale Resolution: |
1/500 lbs. (0.001Kg) |
| Pump Free Air Displacement: |
5CFM (120L/M) |
| Dimensions: |
46”H×27”W×27”D (116×68×68cm) |
| Shipping Weight: |
Approx 200 lbs. (90Kg) |
|
|
|
| IQR390 Recovering/Recycling/Recharging AC Service Station |
|
Main Functions:
·Recovering;
·Recycling (with air purge);
·Vacuum pump;
·Recharging with an electronic scale;
·AC system diagnosis;
·Oil drain and injection;
·Safety Valve for high pressure protection;
Operation Advantages:
·Large size LCD with blue background light and friendly interface makes it easy to use;
·Microprocessor Controlling;
·Key locking function prevents wrong operations;
·No special training required;
·Two recovering modes:
·Quick mode for timesaving;
·Complete mode for full recovery
|
 |
Maintenance Advantages:
·Optic & acoustic status indicators;
·Maintenance message display;
·Heavy duty filter drier;
·High Performance Vacuum pump; |
| Specifications: |
| Voltage: |
220V/50Hz or 110V/60Hz |
| Refrigerant Tank: |
27.5 lbs. (12.5 Kg) |
| Operating Temperature: |
50-120℉ (11-47℃ ) |
| Recycling Filter Drier: |
10cu.in.in-line (164 cc) |
| Scale Resolution: |
1/500 lbs. (0.001 Kg) |
| Pump Free Air Displacement: |
5CFM (120L/M) |
| Dimensions: |
46”H×27”W×27”D (116×68×68cm) |
| Shipping Weight: |
Approx 200 lbs. (90Kg) |
|
|
|
| IQR320Pro Recovering/Recycling/Recharging AC Service Station |
MAIN FUNCTION
·Recovering & Recycling;
·Recharging with electronic scale;
·Air purge (incondensable gases);
·Oil drain and injection;
·AC system diagnosis;
·Vacuum;
Unique Features:
·Microprocessor Controlled;
·Friendly interface makes it easy to use;
·System language: English (other language available);
·Special design oil separator to protect compressor;
·Maintenance message display;
·Optic & acoustic status indicators;
·Program Guided operation;
·Heavy duty filter drier;
·Tank pressure indicating;
|
 |
| Voltage: |
220V/50Hz or 110V/60Hz |
| Operating Temperature: |
50-120℉ (11-47℃ ) |
| Recycling Filter Drier: |
10cu.in.in-line (164 cc) |
| Scale Resolution: |
1/500 lbs. (0.001 Kg) |
| Pump Free Air Displacement: |
2.5CFM (60L/M) |
| Dimensions: |
46”H×27”W×27”D (110×66×66cm) |
| Shipping Weight: |
Approx 200 lbs. (90Kg) |
|
